Our Revolutionary RTSim technology uses commercially available off-the-shelf Workstation or Server grade multi-core computing systems as Real-Time Target Machine for Simulations. In real-time simulators, precise timing is critical. Traditional simulators that rely on OS-level timers often suffer from jitter due to scheduler overhead, making it difficult to achieve time steps below 10 µs. Our innovative approach (patent pending HVDC & FACTS Systems)
generates accurate time steps on the scale of nanoseconds on general-purpose computing systems with modern x86 processors without using high-end FPGA or custom computing simulation hardware.

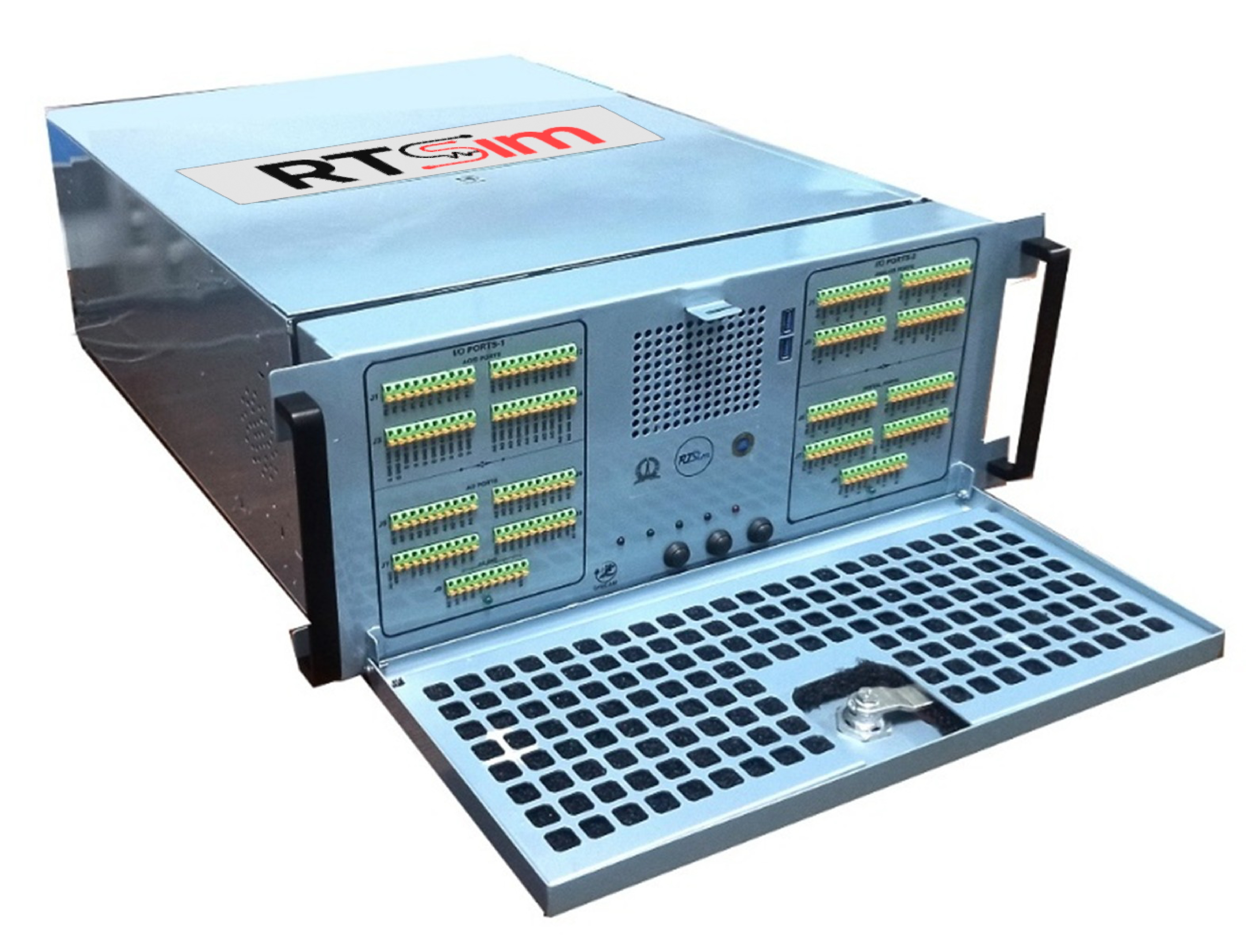

RTSim comes in the following hardware variants
-
RTSim Neo
-
RTSim Pro
-
RTSim Ultra
RTSim can be augmented with Analog and Digital Input/Output cards for Hardware in loop simulations. The Analog and Digital I/O cards Specifications:
| Analog Input Card | |
|---|---|
| Number of Channels | 16 differential (DIFF) or 32 single-ended (SE) |
| Resolution | 16 bits |
| Sampling Rate | 2 MS/s (mega samples per second) per channel |
| Input Range | ±10 V |
| Overvoltage Protection | ±30 V |
| PCI Express | Supports from Gen1 to higher |
| Analog Output Card | |
|---|---|
| Number of Channels | 32 single-ended (SE) |
| Resolution | 16 bits |
| Sampling Rate | 1 MS/s (mega samples per second) per channel |
| Output Range | ±10 V |
| Output Drive | Up to 5 mA per channel |
| Digital I/O card | |
|---|---|
| Number of Channels | 24 Channel (Programmable) , 0−10V range 0 − 10 V range |
| Maximum Switching Rate | 10 MHz |
| Compatibility | TTL/CMOS |
| Overvoltage Protection | ±20 V |
| Counters/Timers | 4 Counters 32 bit resolution @100 MHz base clock |
| PCI Express | Supports from Gen1 to higher |
RTSim Requires a Host PC for model building, testing and downloading to the RTSim target. The RTSim host PC software can be installed in any user supplied PC hosting either Windows or Linux.
-
Support for MATLAB Simulink for model building
-
Custom support for codes of clients in C, C++ for seamless deployment in RTSim hardware
-
Custom support for any commercial or open-source software with code generation capabilities in C, C++ for seamless deployment in RTSim hardware
